ViTacWorld: Scaling Visuo-Tactile World Models
for Contact-Rich Robot Manipulation

Yunao Huang^1,2 Shiyu Sang^1,2 Suting Ni¹ Haotao Lu¹ Shijie Wu¹ Rui Lv¹ Ziyang Guo¹ Ye Shi^1,2 Jingya Wang^1,*

¹ ShanghaiTech University² InstAdapt^* Corresponding author

Paper arXiv Video Code · coming soon

A world model that imagines vision and touch
to improve and evaluate tactile robot policies.

Action-conditioned vision and touch for contact-rich manipulation.Download video ↗

Tactile policy improvementLearn from generated visuo-tactile rollouts.

Tactile policy evaluationCompare policies through imagined executions.

Abstract

Contact-rich robot manipulation requires physical interaction cues that are often invisible to cameras, making tactile sensing essential for robust control. However, scaling visuo-tactile robot learning remains difficult because real tactile interaction data are expensive to collect, hardware-dependent, and limited in task and scene diversity. We present ViTacWorld, an action-conditioned visuo-tactile world model for scalable contact-rich robot manipulation. ViTacWorld leverages public real tactile datasets and a constructed simulation environment to scale visuo-tactile-action data, exploiting the fact that tactile signals are directly grounded in physical contact and can exhibit a smaller simulation-to-real gap than purely visual observations. The model is first pretrained with large-scale real and simulated visuo-tactile trajectories, and then finetuned with real-world policy rollouts to better match downstream manipulation behaviors. Given robot actions, ViTacWorld predicts temporally aligned visual observations and tactile feedback, enabling visuo-tactile-action rollout generation. To the best of our knowledge, ViTacWorld is the first framework that uses a world model for robot visuo-tactile-action trajectory generation and policy evaluation. It serves two roles: synthesizing rollouts to improve downstream tactile policies, and evaluating policies by predicting action-conditioned visuo-tactile outcomes under controlled action sequences. Experiments on contact-rich manipulation tasks show that ViTacWorld generates physically meaningful rollouts, improves policy performance through scalable data augmentation, and enables action-conditioned policy evaluation.

The world model

Generating vision and touch, together

Robot actions condition temporally aligned predictions of the main view, wrist view, and tactile observations.

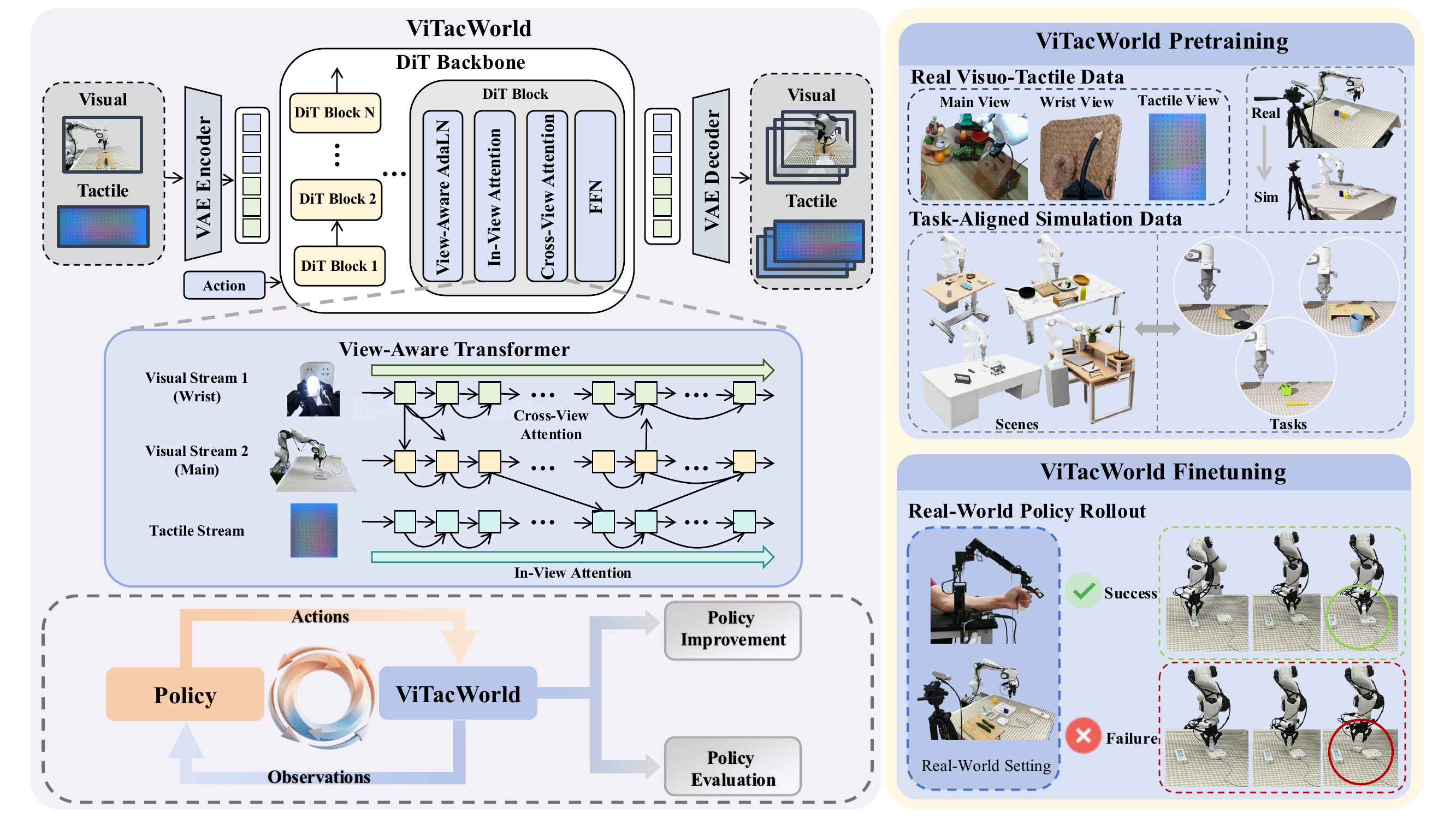

ViTacWorld architecture and training pipeline, from real and simulated visuo-tactile pretraining to policy-rollout finetuning and downstream applications. — ViTacWorld combines a view-aware diffusion transformer with real and simulated visuo-tactile pretraining, followed by real-world policy-rollout finetuning. The same action-conditioned world model supports both policy improvement and policy evaluation.

01 / Policy improvement

Generated touch improves tactile policies

Success increases across four contact-rich tasks and two policy architectures, with further gains from a second augmentation round.

Expert only43.0%

+ Round 167.5%

+ Round 279.5%

50 real-robot trials per task, policy, and training stage. Each round adds 200 selected generated rollouts to the 300 expert demonstrations, yielding 500 and 700 training trajectories.

Real-robot success rates (%). Avg. is the unweighted four-task mean.
Training data	Policy	Charger Plugging	Cucumber Peeling	U-Block Insertion	Cuboid Insertion	Avg.
Expert only	ACT + tactile	4	8	32	24	17.0
	π_0.5	18	28	48	28	30.5
	π_0.5 + tactile	20	44	72	36	43.0
Expert + Round-1 rollouts	ACT + tactile	14	22	36	32	26.0
	π_0.5	34	60	68	42	51.0
	π_0.5 + tactile	44	82	80	64	67.5
Expert + Round-2 rollouts	ACT + tactile	26	44	68	50	47.0
	π_0.5	44	72	82	62	65.0
	π_0.5 + tactile	64	86	94	74	79.5

Matched rollouts. A larger gain with tactile observations.

The vision-only and tactile π_0.5 policies use the same selected visual–action rollouts; only the tactile policy receives the generated tactile stream. Gains over their respective expert-only baselines are 24.5 vs. 20.5 percentage points after round 1 and 36.5 vs. 34.5 points after round 2. Tactile π_0.5 also achieves higher success on every task at every training stage.

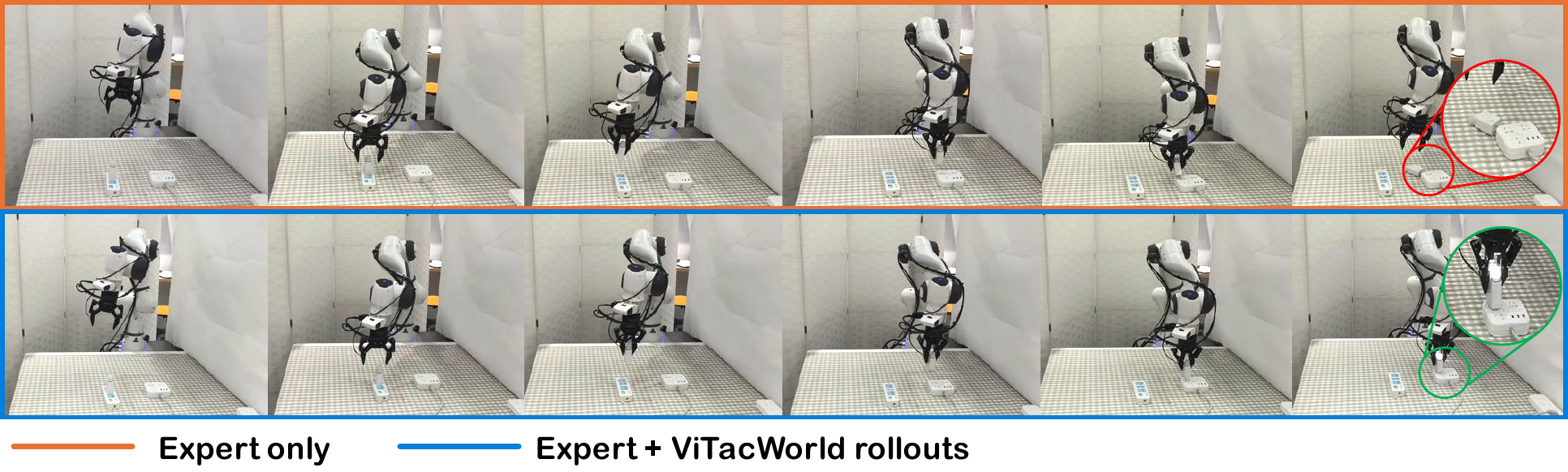

Expert-only tactile policy fails a contact-rich task; the same architecture trained with generated rollouts completes it. — **From expert-only to augmented policies.** Real-robot rollouts show more stable grasping and contact-phase corrections after visuo-tactile augmentation.

More real-robot rollout comparisons

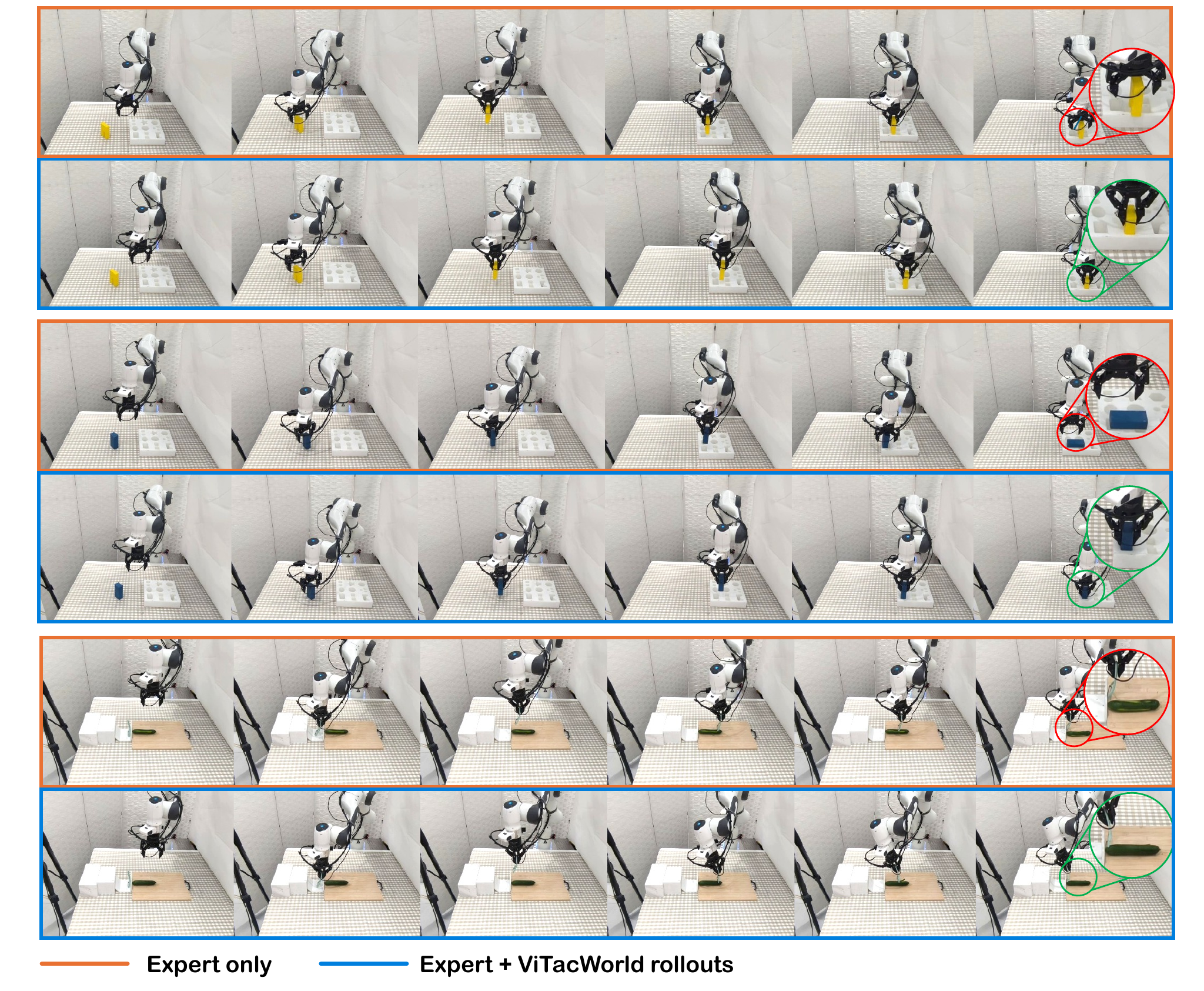

Additional expert-only versus augmented tactile policy comparisons across contact-rich tasks. — Additional qualitative examples from the same policy-improvement study.

02 / Policy evaluation

Imagined performance tracks real performance

Three tactile π_0.5 checkpoints, four tasks, and 50 matched initial states per checkpoint–task combination.

Pearson r0.863

Spearman ρ0.790

12 aggregate points from 600 real–imagined pairs. Each imagined execution starts from the recorded initial state and observation of a real trial, using the same policy checkpoint.

Both evaluations rank the checkpoints expert-only < round 1 < round 2 within every task.

Mean absolute error is 12.33 percentage points, with an average underestimation of 9.0 points. These results support relative policy comparison, rather than exact success-rate calibration or trial-level agreement.

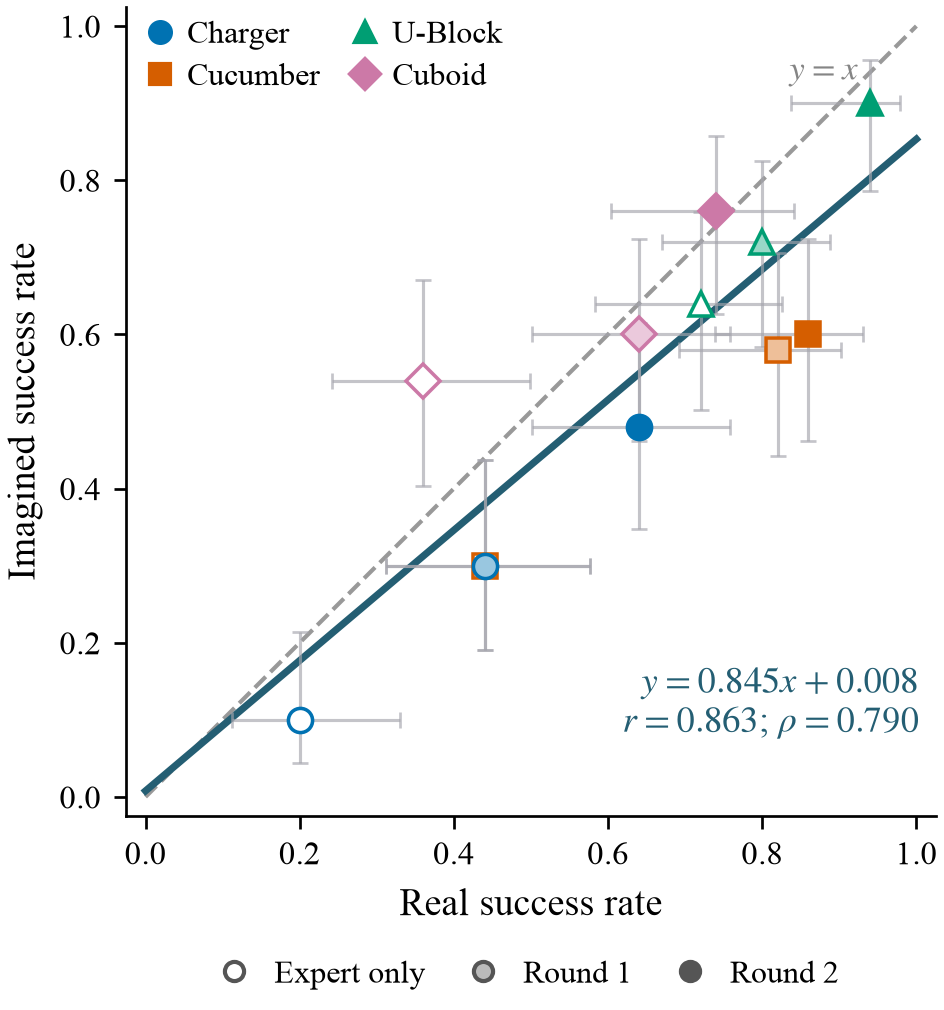

Colors and marker shapes denote tasks; marker fill denotes training stage. Error bars show marginal 95% Wilson confidence intervals. The dashed line is y = x; the solid line is the least-squares fit.

View the 12 real–imagined success-rate pairs

Real / imagined success rate (%); 50 executions per source and condition.
Tactile π_0.5 checkpoint	Charger	Cucumber	U-Block	Cuboid
Expert only	20 / 10	44 / 30	72 / 64	36 / 54
Round 1	44 / 30	82 / 58	80 / 72	64 / 60
Round 2	64 / 48	86 / 60	94 / 90	74 / 76

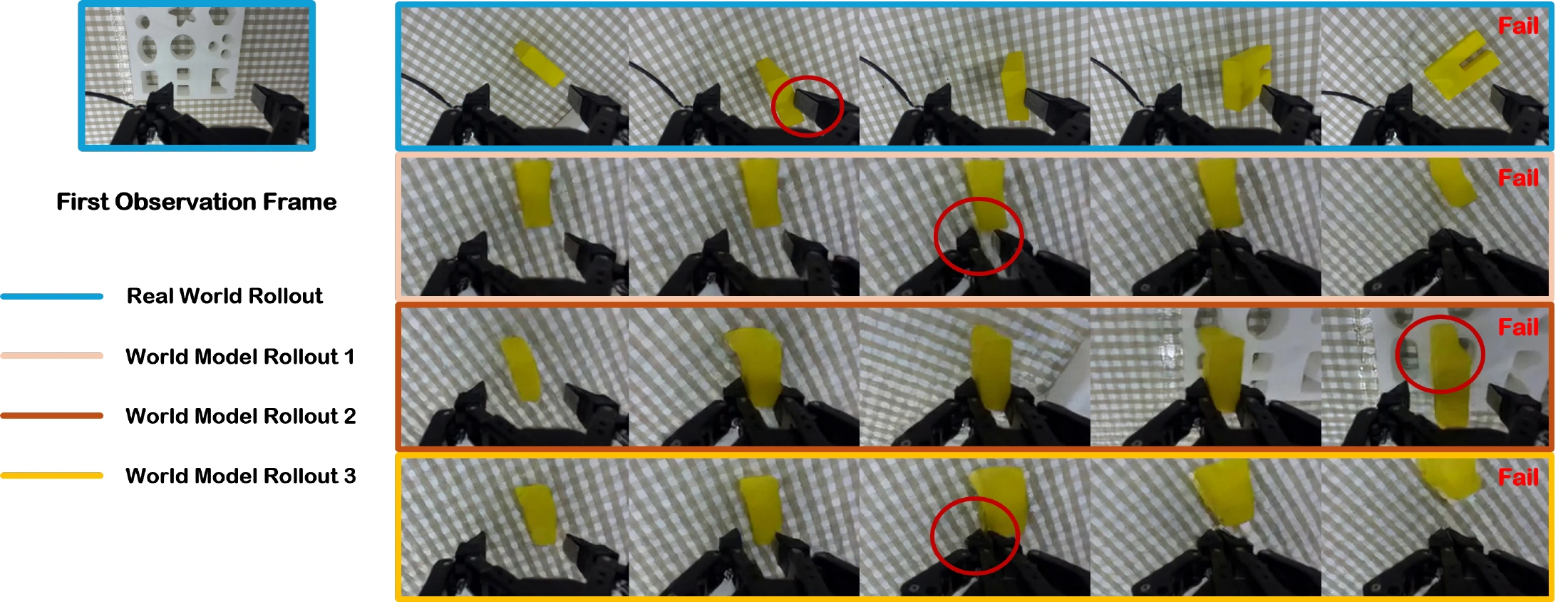

One shared initial observation, a failed real U-Block insertion, and three independently imagined rollouts predicting failure. — **A matched U-Block insertion example.** Real execution and three independently sampled imagined rollouts all fail. This qualitative illustration is separate from the one-imagined-execution-per-initial-state quantitative protocol above.

World-model quality

Consistent visual and tactile predictions

Pretraining, task-aligned simulation, and cross-view attention contribute to prediction quality.

Evaluate contact, not long static trajectories.

All variants are evaluated on the same held-out contact-transition clips, rather than full trajectories, to reduce score inflation from prolonged non-contact segments.

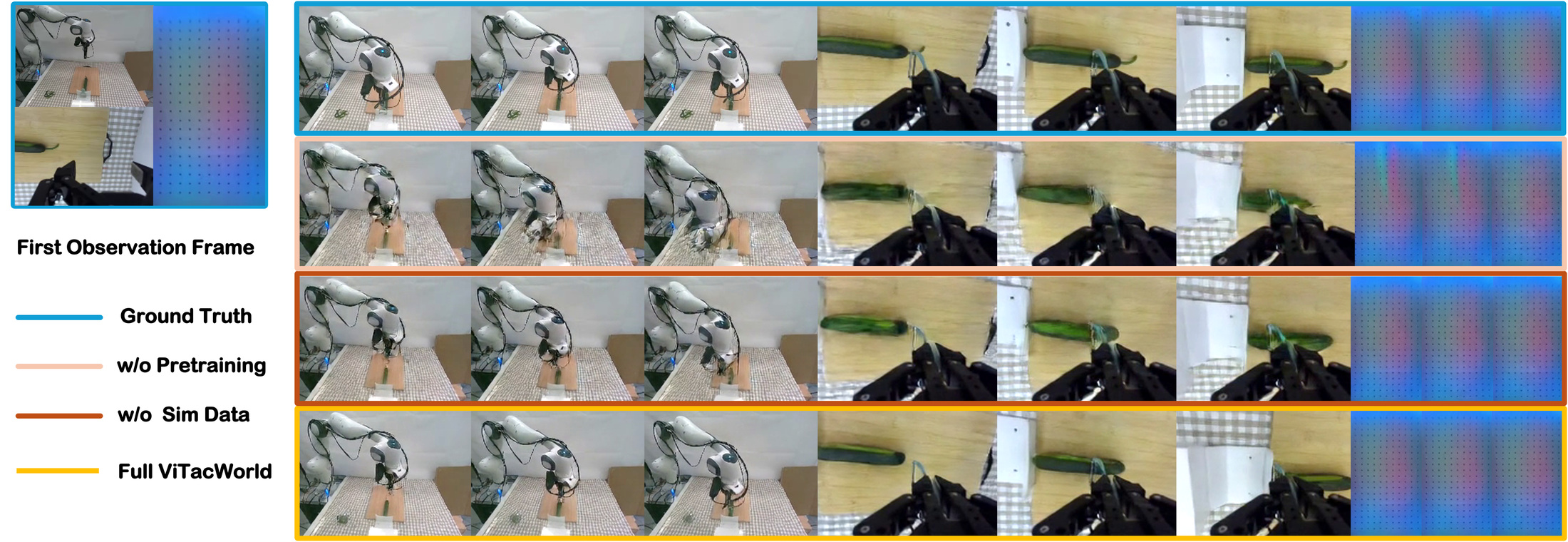

Ground truth and generated main-view, wrist-view, and tactile observations for full and ablated world models. — Given the first observation and logged actions, each model predicts future visual and tactile observations.

Prediction quality on held-out contact-transition clips. Bold indicates the best value within each view.
View	Model variant	PSNR ↑	SSIM ↑	LPIPS ↓
Main	w/o pretraining	22.718	0.7859	0.0781
	w/o task-aligned simulation	23.128	0.8011	0.0687
	w/o cross-view attention	23.653	0.8290	0.0611
	Full ViTacWorld	24.258	0.8286	0.0513
Wrist	w/o pretraining	21.080	0.6649	0.1084
	w/o task-aligned simulation	21.434	0.6869	0.0901
	w/o cross-view attention	21.853	0.6913	0.0854
	Full ViTacWorld	21.925	0.6962	0.0725
Tactile	w/o pretraining	34.967	0.9204	0.0211
	w/o task-aligned simulation	35.127	0.9296	0.0179
	w/o cross-view attention	35.220	0.9310	0.0163
	Full ViTacWorld	35.225	0.9318	0.0157

Replacing cross-view attention with self-attention throughout increases LPIPS in all three streams. Main-view SSIM is nearly unchanged (0.8286 vs. 0.8290); the full model is not best on every metric.

Citation

@article{huang2026vitacworld,
  title={ViTacWorld: Scaling Visuo-Tactile World Models for
         Contact-Rich Robot Manipulation},
  author={Huang, Yunao and Sang, Shiyu and Ni, Suting and
          Lu, Haotao and Wu, Shijie and Lv, Rui and
          Guo, Ziyang and Shi, Ye and Wang, Jingya},
  journal={arXiv preprint arXiv:2607.22530},
  year={2026}
}
